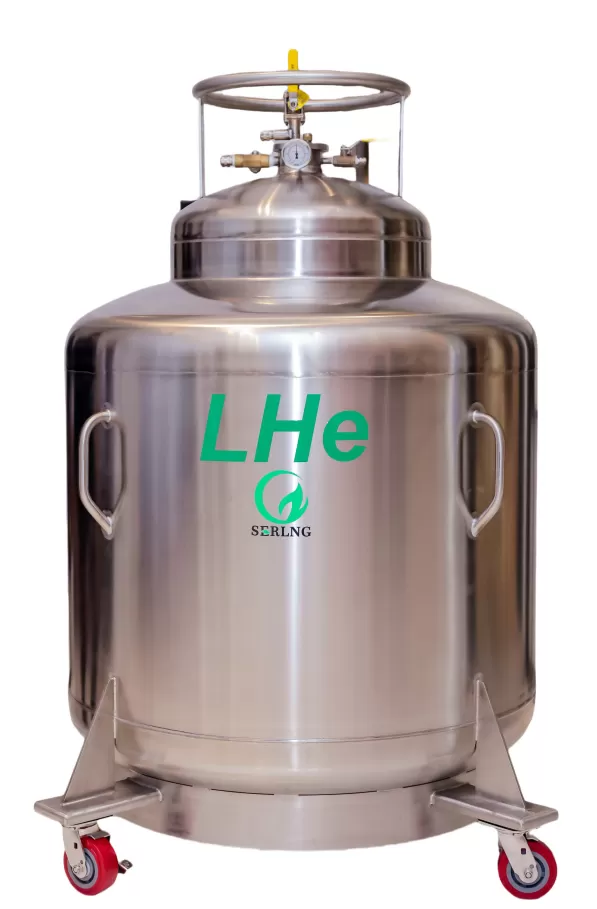

Liquid Helium Dura Cylinder Series

Liquid Helium Dura Cylinder Series

Share:

The liquid helium Dura cylinder is designed and manufactured specifically for the storage and transportation of ultra low temperature liquid helium, with a design temperature of -268.5 ℃. It is suitable for instrument and equipment products that use low-temperature liquid helium, and is also an important component of the low-temperature liquid helium system.


SERLNG liquid helium Dura cylinder has the characteristics of light weight, good insulation, high reliability, and easy operation. The design of the product greatly reduces the loss of liquid helium during storage, transportation, and distribution. The evaporation rate of liquid helium can be effectively reduced by using efficient vacuum thermal insulation coating technology, steam cooling multi cold shield technology and low temperature condensation adsorption high vacuum acquisition technology.

High strength lightweight design, convenient and stable transfer

Select excellent suppliers in the industry and combine advanced manufacturing technology to ensure product safety and low failure rat

Humanized design, easy to use

All pipelines are equipped with low-temperature ball valves to improve the delivery capacity of liquid helium

The top connector assembly can be used for various sizes of hoses

Well thermal insulation, effectively reduce waste and use cost


Model

100

250

315

500

Geometric VolumeL

110

275

350

550

Effective VolumeL

100

275

315

500

NER %/day

1.25

1.00

1.00

1.00

Working PressurePsig

10

10

10

10

Diametermm

610

860

860

1110

Heightmm

1527

1712

1835

1821

Empty WeightKg

113

180

192

277

The length from flange to the bottom of  the inner vessel mm

1132

1310

1473

1421

Main Relief Valve SettingPsig

10

10

10

10

Secondary Relief Valve SettingPsig

12

12

12

12


Liquid helium is widely used in low-temperature physics experiments, such as studying the superconductivity of materials, quantum phenomena, and changes in the physical and chemical properties of materials at extremely low temperatures. Liquid helium can be utilized for cooling superconducting magnets in nuclear magnetic resonance (NMR) and magnetic resonance imaging (MRI) equipment, providing a stable low-temperature environment to enhance the performance and imaging quality of these devices. In the medical field, although less common, liquid helium is also used as a refrigerant in some cryotherapy applications. It also plays a significant role in the aerospace industry, for instance, in the cooling systems of satellites and space stations to ensure the normal operation of critical equipment. Additionally, liquid helium can be used for cooling rocket engines and fuel storage.
