Industrial Gas

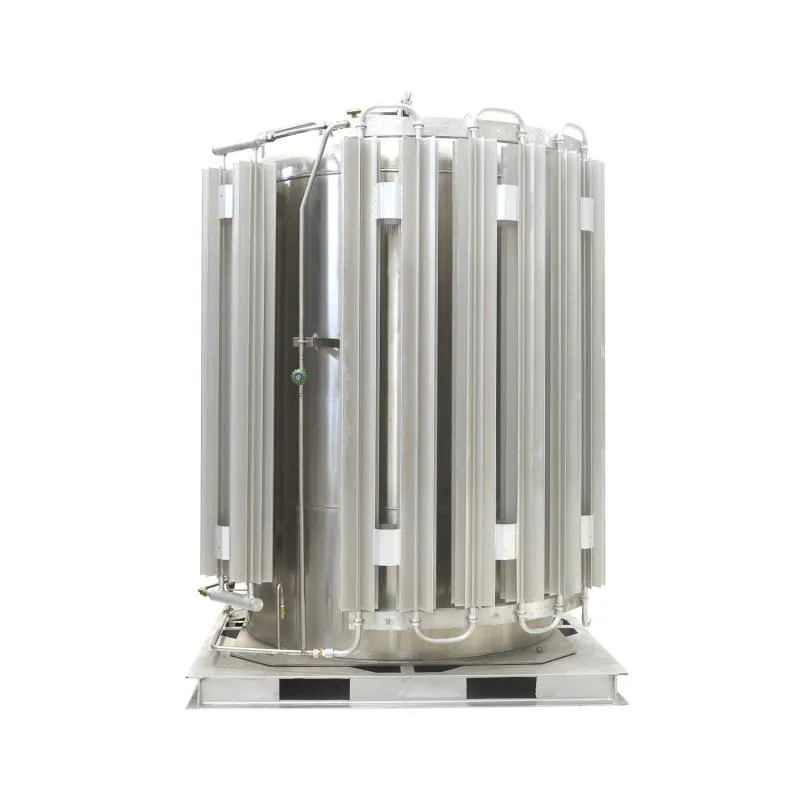

The micro cryogenic liquid storage tank is an innovative storage platform, which is designed to provide a more economical and convenient distribution and use for industry, laboratory, medicine and other fields. It is more reliable, safer and more economical than the welded insulated cylinder transportation. This platform can solve the wrong gas type during replacing gas cylinders, avoid waste of residual gas, and reduce the cost of manual handling and maintenance.
High quality service commitments to reassure customers
Beyond the standard thermal insulation performance, the storage duration is extended and the cost is reduced
Not only suitable for filling by ordinary transport tanker, but also for fast zero loss filling by automatic filling truck
Humanized system design, convenient disassembly, operation and maintenance
Equipped with high precision digital liquid level gauge which support remote transmission function to help users set up online monitoring system
Select excellent suppliers in the industry and combine advanced manufacturing technology to ensure product safety and low failure rate
1C | 2C | 3C | 5C | ||||||||||||
Geometric volume （m³） | 1.05 | 2.11 | 3.00 | 5.00 | |||||||||||
Design Pressure | Mpa | 1.6 | 2.5 | 3.5 | 1.6 | 2.5 | 3.5 | 1.6 | 2.5 | 3.5 | 2.35 | 1.6 | 2.5 | 3.5 | 2.35 |
Psig | 230 | 360 | 507 | 230 | 360 | 507 | 230 | 360 | 507 | 340 | 230 | 360 | 507 | 340 | |
Filling rate （%） | 95 | ||||||||||||||
Effective Volume（m³） | 1.00 | 2.00 | 2.75 | 4.74 | |||||||||||
Dimensions | Length（mm） | 1392 | 1650 | 1700 | 2100 | ||||||||||
Width（mm） | 1619 | 1873 | 1850 | 2250 | |||||||||||
Height（mm） | 2225 | 2826 | 3125 | 3375 | |||||||||||
Weight（kg） | 910 | 950 | 1035 | 1340 | 1500 | 1650 | 1490 | 1540 | 1900 | 1950 | 2270 | 2560 | 2690 | 3010 | |
NER LN2 (%/day) | LOX | ≤0.985 | ≤0.696 | ≤0.660 | ≤0.450 | ||||||||||
Gas flow (Nm³/hr) | O2 N2 AR | 30 | 40 | 60 | 80 | ||||||||||
NG | 22 | 22 | 45 | 65 | |||||||||||
CO2 | 10 | 13 | 20 | 30 | |||||||||||
Liquid level display | Mechanical/Digital | ||||||||||||||

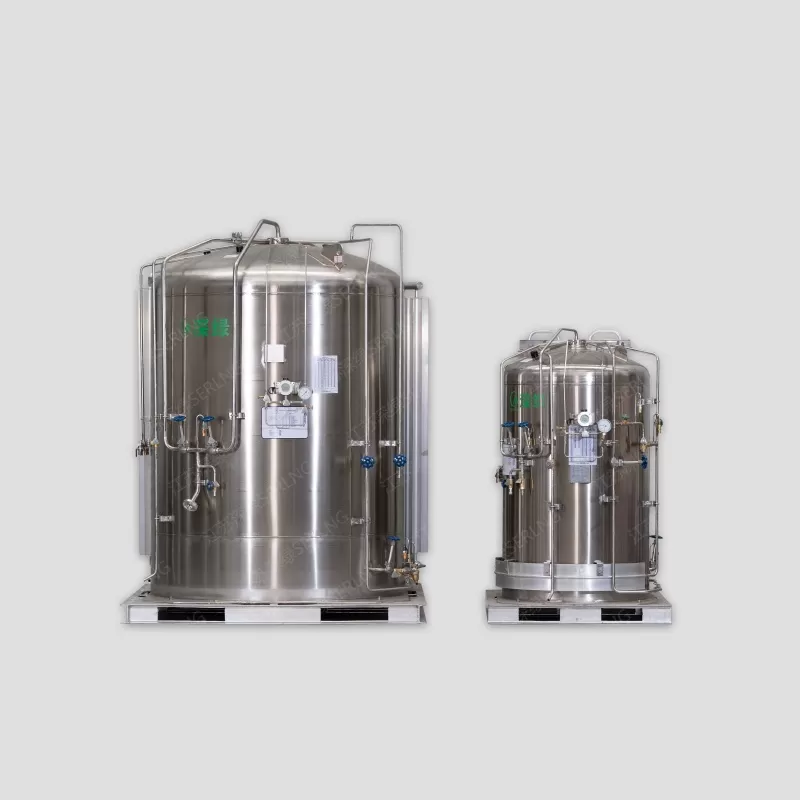

The micro tank at Jiangsu SERLNG New Technology CO., Ltd. can be delivered in 1C, 2C, 3C, 5C with different pressure in plastic bag, or as customized specification to reach the perfect solution.

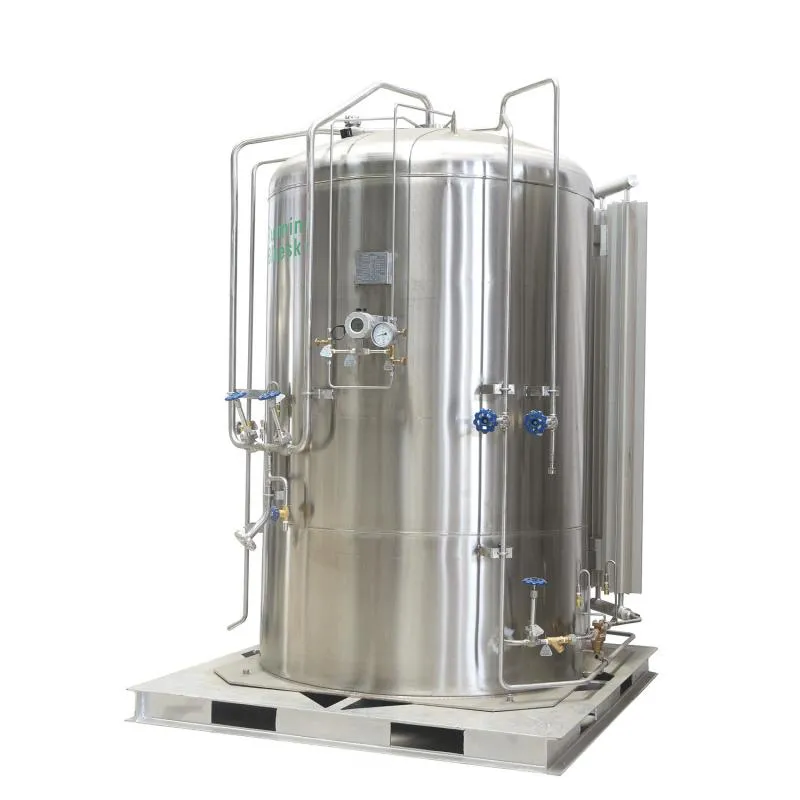

"Serlng Easy" series micro tanks are designed for efficient gas use. They have longer holding time, slower self pressurization speed, larger gas supply flow and faster pressurization speed than similar gas cylinders. It has good applicability. It can be filled with either ordinary transport tank trucks or automatic filling trucks for fast zero loss filling.
The advanced digital level gauge is convenient for customers to operate and use. It improves the measurement accuracy and also solves the problem of error reading via the mechanical level gauge. Besides, it supports remote monitoring function and can help customers to monitor the real-time state of tanks via mobile or PC terminal.
Keep In Touch
You Can Contact Us Immediately For Customized Solutions!
SERLNG is committed to providing engineering low-temperature products and services in the industrial gases, life sciences, and green energy markets. We are committed to providing our customers with a wide product line, advanced technology, and continuous innovation.
